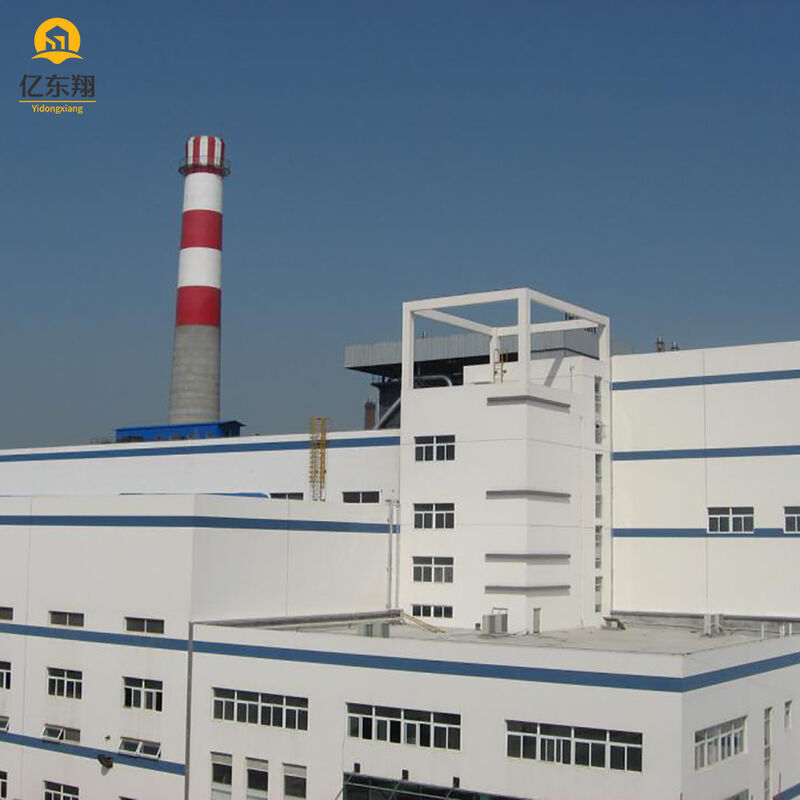

Light Gauge Steel Frame Multi Storey Building for High Rise Construction
Basic Properties
Place of Origin:
CHINA
Brand Name:
YDX
Certification:
ISO,BV,SGS,CE
Model Number:
YDX-H112
Trading Properties
Minimum Order Quantity:
1SQM
Price:
USD35-100/SQM
Payment Terms:
L/C,T/T,Western Union,MoneyGram
Supply Ability:
10000TON/MONTH
Product Summary
Light Gauge Steel Frame Structure Construction for Multistorey High Rise Steel Buildings Product Attributes Attribute Value Production Finished for direct install support Shot Blasting Level SA 2.5 Sustainability Eco-friendly Color Optional Installation Engineers' Guidance Door Type Rolling/Sliding...
Product Details
Highlight:
Light Gauge Steel Frame Structure Construction
,Construction High Rise Steel Buildings
,Multistorey High Rise Steel Buildings
Production:
Finished For Direct Install Support
Shot Blasting Level:
SA 2.5
Sustainability:
Eco-friendly
Color:
Optional
Installation:
Engineers' Guidance
Door Type:
Rolling/Sliding/Swing
Technician:
Free Technical Support
Product Description
Light Gauge Steel Frame Structure Construction for Multistorey High Rise Steel Buildings
Product Attributes
| Attribute | Value |
|---|---|
| Production | Finished for direct install support |
| Shot Blasting Level | SA 2.5 |
| Sustainability | Eco-friendly |
| Color | Optional |
| Installation | Engineers' Guidance |
| Door Type | Rolling/Sliding/Swing |
| Technician | Free technical support |
Modular Steel Structure Construction for Multistorey High-Rise Commercial Buildings
Steel construction is most often used in:
- High rise buildings - for strength, low weight, and fast assembly that saves costs
- Industrial buildings - enables creation of large span spaces at low cost
- Warehouse buildings - ideal for spacious storage requirements
- Residential buildings - using light gauge steel construction techniques
- Temporary Structures - quick to set up and remove when needed
| Application | Characteristics |
|---|---|
| Steel structure workshop High rise steel structure building Steel warehouse Large span steel frame Steel bridge Airport hanger Exhibition hall Gym shed Office building Poultry house Multi-storey building Storage shed | High strength Light dead load Good plasticity and toughness Easy fabrication High accuracy Saves 65% of construction time Large span capability Space flexibility Reduces construction waste and noise 98% steel components recyclable Environmentally friendly |
Technical Specifications
| Size(m): | Width × Length × Height |
| Type: | Single slope, double slope, Multi-slope Single span, double-span, Multi-span Single floor, double-floor, Multi-floor |
| Base: | Steel foundation bolts |
| Steel frame: | Material Q345(S355JR)(Gr50) or Q235(S235JR) steel Straight cross-section or Variable cross-section Steel welded H section painted or galvanized |
| Bracing: | X-type or V-type or other type bracing made from angle, round bar, etc |
| Wall & Roof Purlin: | C section channel or Z section channel, Size from C80~C300; Z100~Z300 |
| Roof & wall cladding: | Single color corrugated steel sheet 0.326~0.7mm thickness Sandwich panel with EPS, ROCK WOOL, GLASS WOOL, PU insulation (50mm-200mm thickness) Recommended coating: PVDF, SMP, HDP, PE |
| Window: | UPVC/PVC or Aluminum Alloy window frame with glass |
| Door: | Exterior door: Sliding or Roller shutter door Internal door: 50mm thickness EPS sandwich panel with aluminum alloy door frame |
| Gutter material: | Color steel sheet or galvanized steel or stainless steel |
| Rainspout: | PVC pipe |
| Connection: | High strength bolts, intensive bolt, self-drilling screws |
| Accessories: | Skylight panel, Ventilation, Fasteners etc |
| Surface process: | Shot blasting Sa2.5; Two layers of Anti-rust Painting or galvanized |
| Packing: | Main steel frame without packing load in 40' GP Roof and wall panel load in 40' HQ |
Cost Estimation Requirements
To provide an accurate cost estimate for your steel structure, please provide the following information:
- Dimension: Length, width, height, eave height, roof pitch
- Doors and windows: Dimension, quantity, position
- Local climate: Wind speed, snow load, seismic magnitude
- Insulation material: Panel type, sandwich materials, sandwich thickness
- Crane metal structures: Lifting height and weight if overhead crane is required
- Any materials restricted for import in your country
- Special requirements (fire proofing, insulated roof, etc.)
- Existing drawings or reference pictures (if available)
Packing and Loading
Shipment via 20'/40'/40HC/40OT sea containers with specialized packaging:
- Steel weld components protected with blankets or bubble wrap to prevent scratches
- All components consolidated in steel pallets within containers for efficient handling
- Sandwich panels packed in steel pallets for optimal protection
- Comprehensive container load plans and regional unloading plans provided
