Low Carbon Steel Frame Warehouse Storage Food Plant Sustainable Steel Buildings
Product Details
Steel Frame Warehouse Storage Sustainable
,Low Carbon Steel Frame Warehouse Storage
,Low Carbon Sustainable Steel Buildings
Steel structure Design Low Carbon Food Plant Steel Structure warehouse
Steel structure building warehouse is a new type of light steel structure building system formed from a main steel framework comprised of H section, Z section and U section steel components, the roof and walls utilizing a variety of panels and other components such as windows, doors, and cranes.
Steel structures are mainly used for construction workshop, warehouse, apartment, garage industrial building, agriculture building, sport stadium, show hall, steel hangar and other functional steel buildings.
| Model | 1. Single slope, Double slope, Multi-slope. 2. Single span, Double-span, Multi-span, Single floor, Double floors. |
| Column and Beam | 1. Material Q345(S355) or Q235 steel. 2. All bolts connecting. 3. Straight cross-section or Variable cross-section. |
| Surface | Hot-dip galvanized or painted |
| C or Z purling | C or Z Section Steel, size from C120~C320, Z100~Z200 |
| Roof and wall panel | 1. EPS, PU, Rock wool sandwich panel 2. Single colorful corrugated steel sheet 0.35~0.6 mm thick |
| Brace | X or V as well as other type bracing made from angle, round pipe etc. |
| Accessories | Semi-transparent skylight belts, Ventilators, down pipe, outer gutter etc. |
| Windows | Plastic Steel or Aluminum Alloy Windows |
| Doors | Sliding doors, rolling shutter doors, metal doors, etc. |
| Certificate | CE, ISO9001:2008, AWS certified welder passport, SGS, BV. |
After the laying is completed, find the rules for the anchor bolts. Strictly position according to the axis and elevation provided.
Find the rules: It is required that all anchor bolts are aligned and the steel columns are placed in a straight line.
When hoisting steel columns, the foundation nuts should be leveled in advance. During hoisting, no one is allowed to stand within the lifting range of the crane. After the steel columns are basically in place, people should install them. The anchor nut should be tightened.
Lifting of steel beams after assembly: After the construction of steel column tie rods/column supports is completed, the steel beams will be lifted.
Tie rod connection between steel beams: must achieve bolt tightening and consistent direction.
The roof steel beams use high-strength bolts and do not require welding.
Platform beams are divided into main beams and secondary beams: the main beams are generally welded, and the wing plates are welded. Secondary beams are generally not welded.
Roof inner panel completed

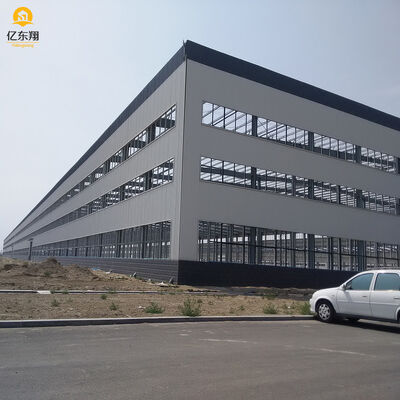

Finished photo
- Professional design team, we could design the drawing as your requirement or calculate the steel quantity based on your drawing.
- Skilled fabrication team and advanced equipment. We make the independent production schedule to each project.
- One-stop service: We have completed lots such kinds of projects, we could provide the integrated proposal for your project.
- Professional QC team will guarantee that we will provide the production and service as your request.
- After sales service: If it has any questions that need us to do in your process of using, such as the maintain of outside insulation and steel components, just tell us, we will try to provide the service as well as we can.
| 1 | Location (where will be built?) | |
|---|---|---|
| 2 | Size: length*width*height | |
| 3 | wind load (max. wind speed) | |
| 4 | snow load (max. snow height) | |
| 5 | anti-earthquake | |
| 6 | brickwall needed or not | |
| 7 | thermal insulation | |
| 8 | door quantity & size | |
| 9 | window quanity & size | |
| 10 | crane needed or not |
