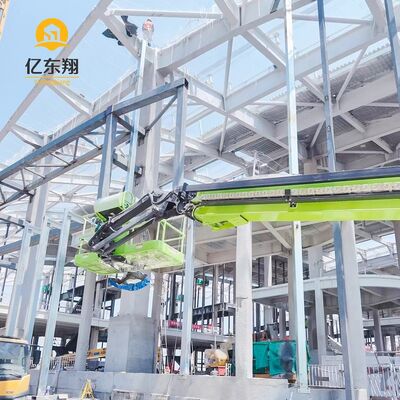

Welded Or Bolted Connection Prefab Steel Structure Warehouse With Large Span Design Hot Rolled Technique

Basic Properties
Place of Origin: CHINA,QINGDAO
Brand Name: YDX
Certification: CE ISO SGS
Model Number: YDX-14
Trading Properties
Minimum Order Quantity: 10-10000 square meters
Price: $30.00-$65.00
Payment Terms: T/T
Supply Ability: 10000 tons/month
Tags

Warehouse Prefabricated Buildings

Space Frame Steel Structure

Prefab Steel Warehouse Buildings
Product Summary
Prefab Steel Structure Warehouse Workshop Large Span Industrial Building Product Attributes Window Aluminum Alloy Window Technique Hot Rolled Frame Steel Structure Drawing CAD, TEKLA, 3D Model, PKPM, BIM Connection Welded Or Bolted Dimension Customers' Requirement Purlin C Section or Z Section, Q235 ...

Product Details

Highlight:

Hot Rolled Prefab Steel Warehouse

,

Welded Prefab Steel Warehouse

,

Large Span Prefab Steel Warehouse
Features: Steel Frame Warehouse
Window: Aluminum Alloy Window
Technique: Hot Rolled
Frame: Steel Structure
Drawing: CAD, TEKLA, 3D Model, PKPM, BIM
Connection: Welded Or Bolted
Dimension: Customers' Requirement
Purlin: C Section Or Z Section, Q235
Design: Customizable
Intensity: High Intensity
Structure Type: Frame
Frame Type: Steel Frame
Earthquake Resistance: Strong
Windows: Aluminum
Seismic Design: High Seismic Zone
Installation Time: Short
Aesthetics: Modern
Construction Type: Frame
Cost: Moderate
Product Resistance: Corrosion Resistant
Finish: Galvanized/Painted/Cladding
Roof: Glass Wool, EPS, PU
Product Fire Resistance: Fireproof
Door: Sliding Door Or Rolling Door
Product Description
Prefab Steel Structure Warehouse Workshop Large Span Industrial Building
Product Attributes
Window Aluminum Alloy Window
Technique Hot Rolled
Frame Steel Structure
Drawing CAD, TEKLA, 3D Model, PKPM, BIM
Connection Welded Or Bolted
Dimension Customers' Requirement
Purlin C Section or Z Section, Q235
Features Steel Frame Warehouse
Design Customizable
Intensity High Intensity
Product Description

Our steel structure warehouse is a modern storage solution offering numerous advantages for various industrial needs. These prefabricated buildings provide exceptional flexibility compared to traditional concrete warehouses, allowing for easy transformation and expansion to meet evolving business requirements.

The steel construction creates large, column-free indoor spaces, maximizing storage capacity. Built with durable Q355B carbon structural steel, these warehouses withstand heavy loads and seismic activity while offering a 50-year service life. The material's recyclability makes it an environmentally sustainable choice, with quick construction times minimizing environmental impact.

Welded Or Bolted Connection Prefab Steel Structure Warehouse With Large Span Design Hot Rolled Technique 0
Multi-story Steel Structure Applications

Multi-story steel structures are increasingly popular for commercial and residential projects due to their strength and versatility. The inherent strength of steel allows for taller buildings with fewer support columns, creating more usable space and architecturally appealing designs.

These structures demonstrate excellent resistance to natural disasters including earthquakes and hurricanes. Steel's flexibility enables it to absorb impact from strong winds, while its durability ensures long-term performance with minimal maintenance requirements.

Product Applications
  • Light Frame Steel Construction Hangar Design
  • Prefabricated Steel Structure Factory Building
  • Workshop warehouse

A pre-engineered steel building is a modern technology where the complete designing is done at the factory and the building components are brought to the site and then fixed/jointed at the site, all is bolt connection, no need any welding!

An efficiently designed pre-engineered building can be lighter than the conventional steel buildings by up to 30%. Lighter weight equates to less steel and potential price savings in structural framework.

Specification for Steel Structure Building
Main Steel Frame Steel Column & Beam
Material Q345B (S355JR) or Q235B(S235JR)/ Welded/Hot Rolled H section steel
Surface Hot Dip Galvanized or Painted
Connection All Bolts Connection
Supporting System
Roof Purlin C or Z Section Steel, Q235B
Wall Purlin C or Z Section Steel, Q235B
Bracing Steel Rod, Q235B
Cross Support Steel Rod, Q235B
Column Support Angle Steel; Steel Rod; Q235B
Angle Brace Angle steel,Q235B
Tie Bar Steel Pipe,Q235B
Roof & Wall System
  • Single Colorful Corrugated Steel Sheet; Thickness: 0.3-0.8mm
  • Sandwich Panel with EPS, Rock Wool, Fiberglass,PU; Thickness: 50-150mm
Accessories
Door Sliding; Rolled Up Door (Manual/Auto)
Window Aluminum Alloy; PVC
Downspout PVC pipe
Gutter Galvanized Steel Sheet; Stainless Steel
Ventilator Stainless Steel Turbine Ventilator
Skylight Belt FRP or PC semi-transparent Skylight Belt
Flash Color Steel Sheet
Fittings Anchor Bolt; High Strength Bolt; Standard Bolt, Self-tapping nail etc
Steel Structure Building Components
  • Primary Framing: Box beam column, cross steel column, H-shaped steel column, steel beam
  • Secondary Framing: Galvanized Z and C sections purlin
  • Roof and Wall panels: Steel sheet and insulated sandwich panels (EPS, fiberglass wool and PU)
  • Steel Decking Floor: Galvanized steel decking board
  • Structural subsystem: Divider, gutter, awning, partition wall
  • Mezzanines, Platforms: Painted or galvanized H beam
  • Other Building Accessories: Sliding doors, roll up doors, aluminium windows, louvers, etc.
Additional Specifications
Service Life 50-70years
Place of Origin Qingdao,Shandong,China
Application workshop, warehouse, poultry house,garage etc
Grade Q235B, Q355B or as per customer's need
Bolt Grade M20, M16, M14 etc
Connection intensive bolt, ordinary bolt
Drawings & Quotation
  • Customized design is welcomed
  • For accurate quotation and drawings, please provide: length, width, eave height and local weather conditions
Welded Or Bolted Connection Prefab Steel Structure Warehouse With Large Span Design Hot Rolled Technique 1 Welded Or Bolted Connection Prefab Steel Structure Warehouse With Large Span Design Hot Rolled Technique 2
Request a Quote

Please provide the following information for an accurate quotation:

Location (where will it be built?) _____country, area
Size: length*width*height _____mm*_____mm*_____mm
Wind load (max. wind speed) _____kn/m2, _____km/h, _____m/s
Snow load (max. snow height) _____kn/m2, _____mm
Anti-earthquake _____level
Brickwall needed or not If yes, 1.2m high or 1.5m high
